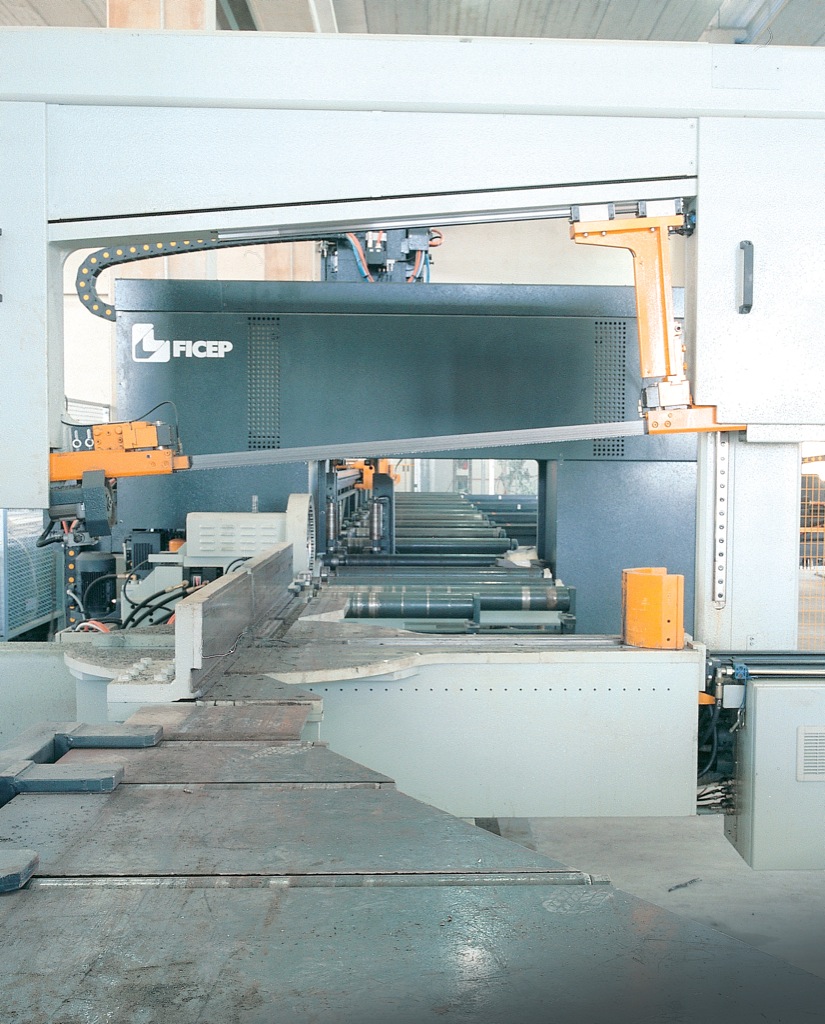

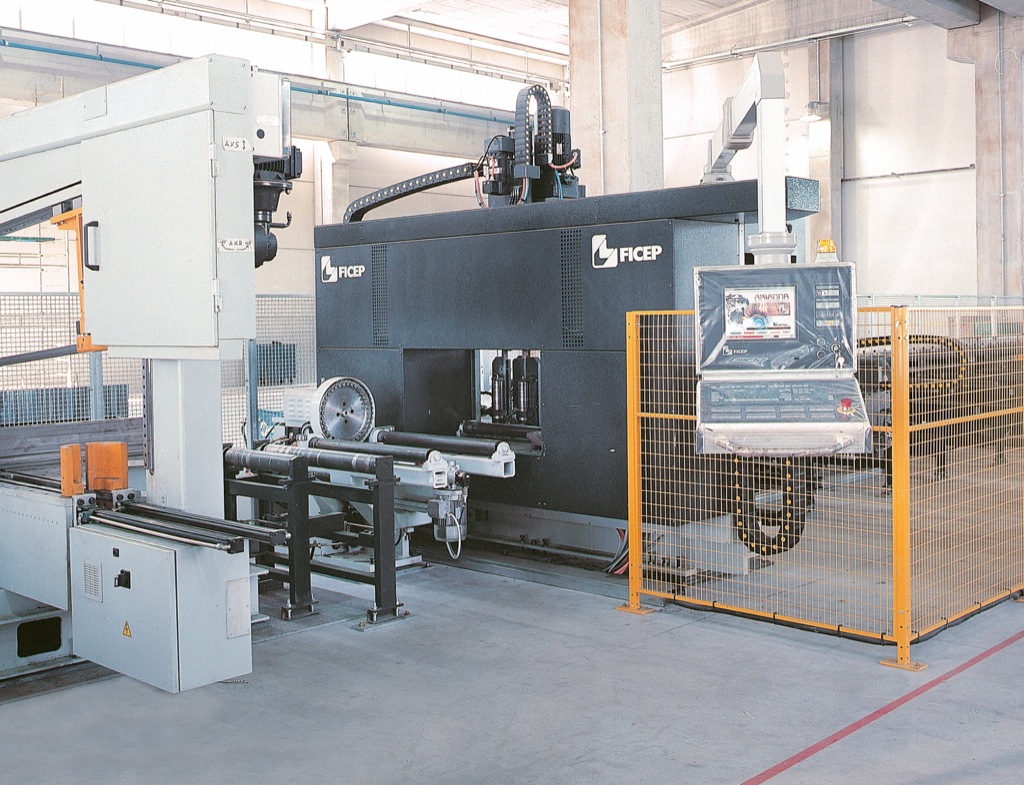

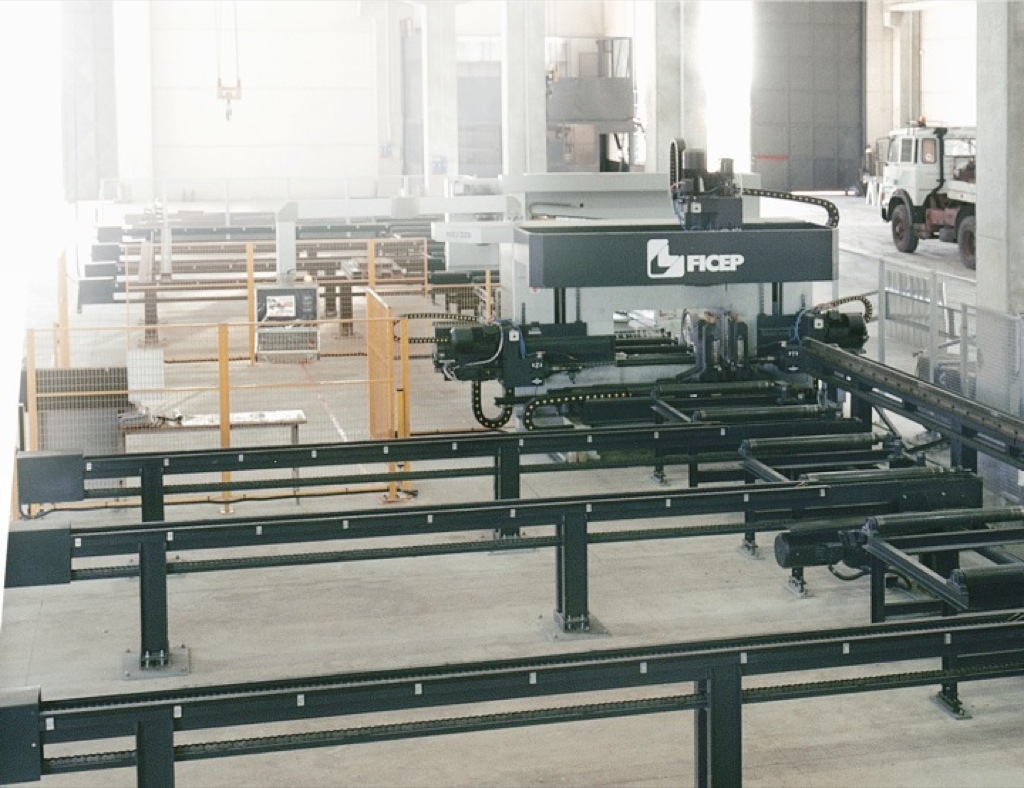

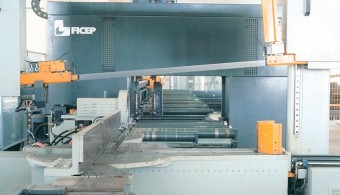

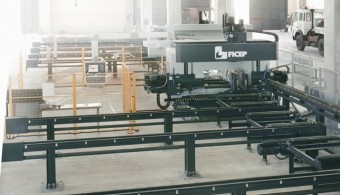

AUTOMATIC CNC LINE FOR DRILLING, MARKING AND CUTTING H-BEAMS, C-BEAMS, U-BEAMS

MAX HEIGHT 1.000 MM

WORKING PROFILE HEIGHT MIN 80mm – MAX 1015mm
WORKING PROFILE WIDTH MIN 42mm – MAX 450mm
DRILLING HEADS 3
MANDRELS PER HEADS 1
TOOLS PER SPINDLE 6
MANDREL POWER 7.5 kw
MAX DIAMETER 40
CNC CONTROL AXES 3
CUTTING CAPACITY 90 1015mm X 450mm
CUTTING CAPACITY 45 620mm X 450mm
ENGINE POWER 7.5 kw
BAND SAW SPEED 20-100 round/min
