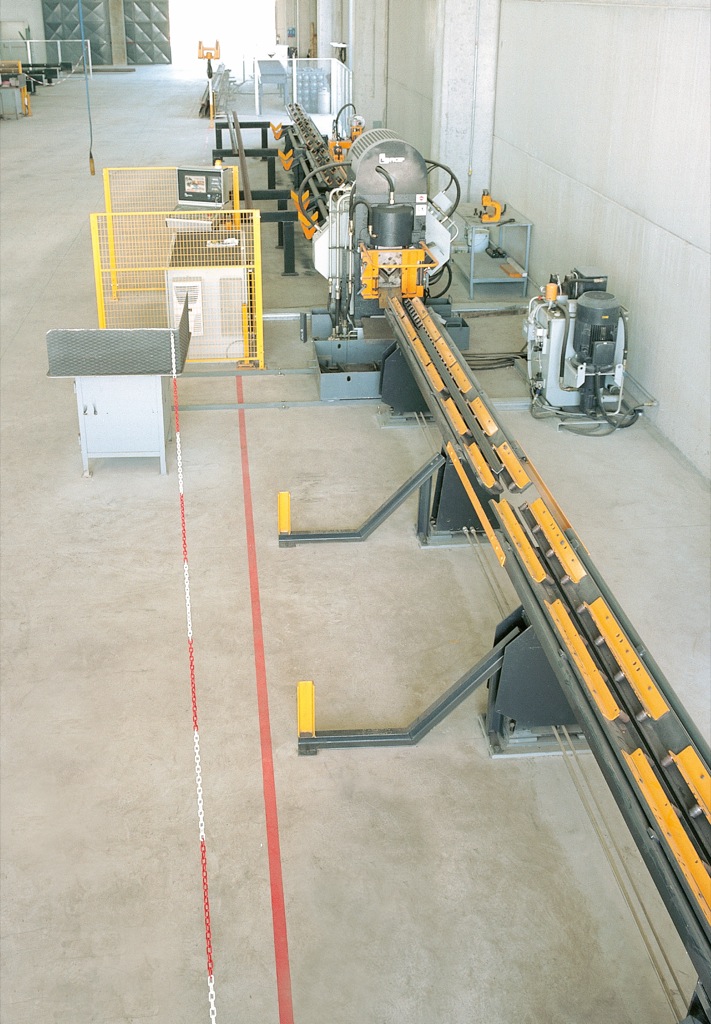

AUTOMATIC CNC LINE FOR PUNCHING, MARKING AND CUTTING ANGLES AND FLATS "FICEP A15.34N"

MAX AVAILABLE POWER – KN 650
DIAMETER PER THICKNESS (FE 44) – 30X15MM
DIAMETER PER THICKNESS (FE 52) – 30X12MM
ANGULAR PROFILE (FE 44) – MIN 35X35X3MM – MAX 150X150X15MM
ANGULAR PROFILE – MIN 80MM – MAX 140M
FLAT – MIN 50X5MM – MAX 150X15MM

CUTTING CAPACITY MAX AVAILABLE POWER OF SHEAR – 1800 KN
MARKING CAPACITY MAX AVAILABLE POWER – 600/1000 KN

MARKING SELECTABLE STATIONS – 4/8
AVAILABLE BODY TYPES – 12713
DRILLING CAPACITY MAX DIAMETER – 31,75 – 40MM
CONTROL AXES – 3
