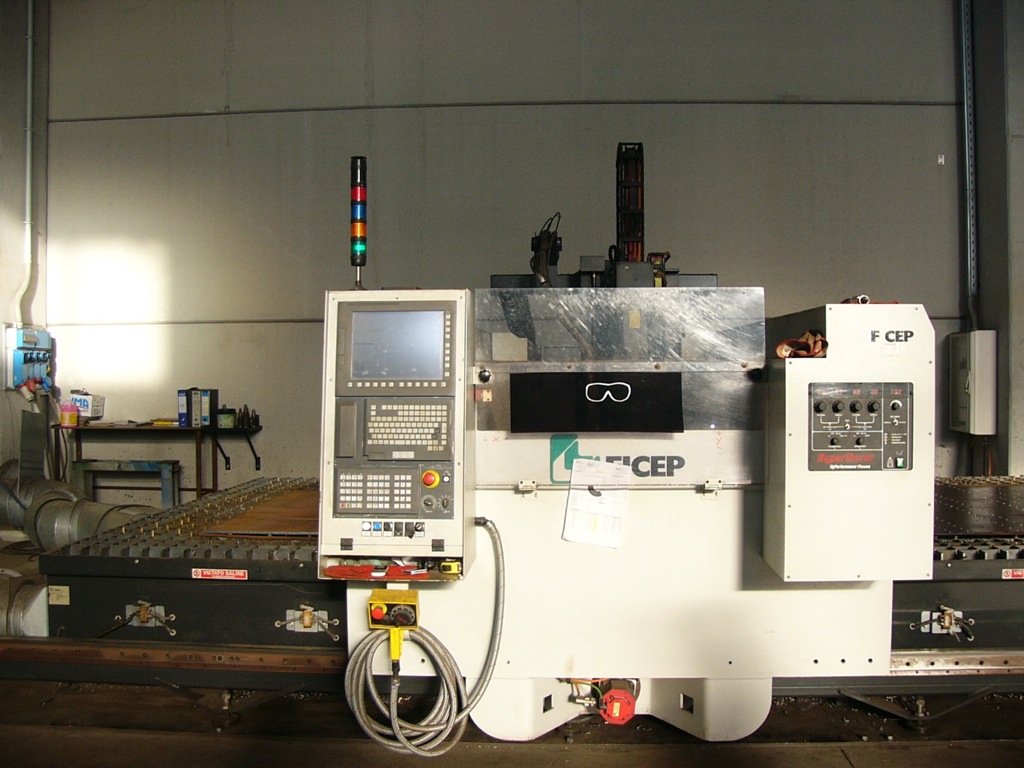

CNC PLASMA PUNCHING, DRILLING AND SHEARING MACHINE

STANDARD FEATURES
Twin beam construction for minimum deflection when machining
Fanuc CNC controls for precision operationreliability and widespread support
Low backlash hardened and ground helical rack on X&Y&U axes
Simple on floor installation without need for deep foundations
Miminal floorspace (up to 30% less than other solutions)
High speed milling and drilling with ISO taper tooling and automatica changers
Locked adaptive plate clamping for minimal vibration and controlled breakthrough for long drill life at high production rates
Precision laser plate sensing
U axis to allow milling while plate is clamped
Tool changing while plate clamped for precision tapping, countersinking boring and milling
Helical milling for larger holes with low cost tooling
Face milling for bearing surfaces in construction and machine applications
400 HPR 400 plasma systems
Simple plate location and orientation detection systems
Cutting lengths from 5-30m/ 20-100 ft
air/mist or liquide drill coolant

OPTIONAL FEATURS
Optional tool monitoring and sister tooling systems
Plate marking and layout‚ scribing with patent pending technology
Vacuum chip evacuation systems
